Product

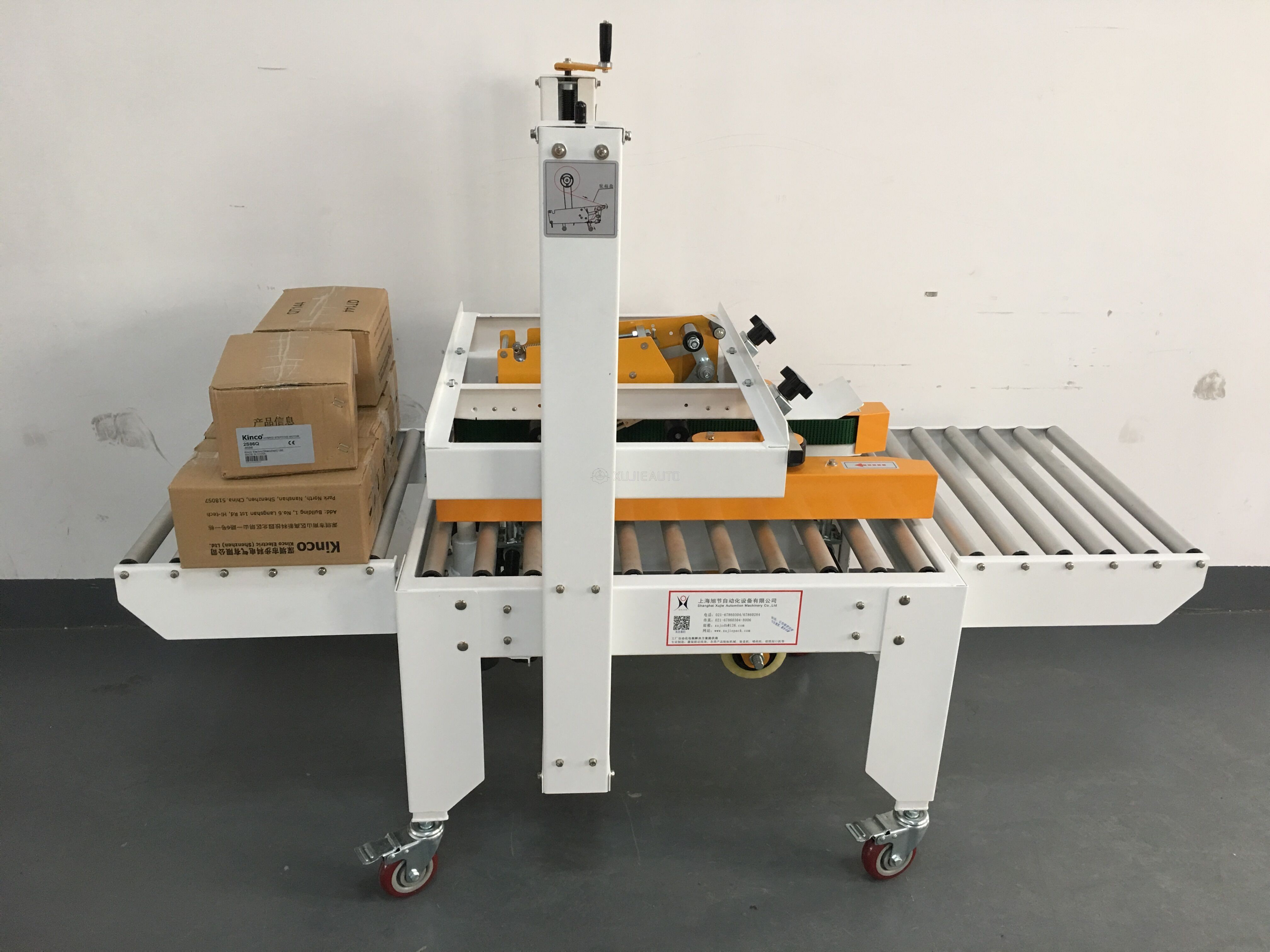

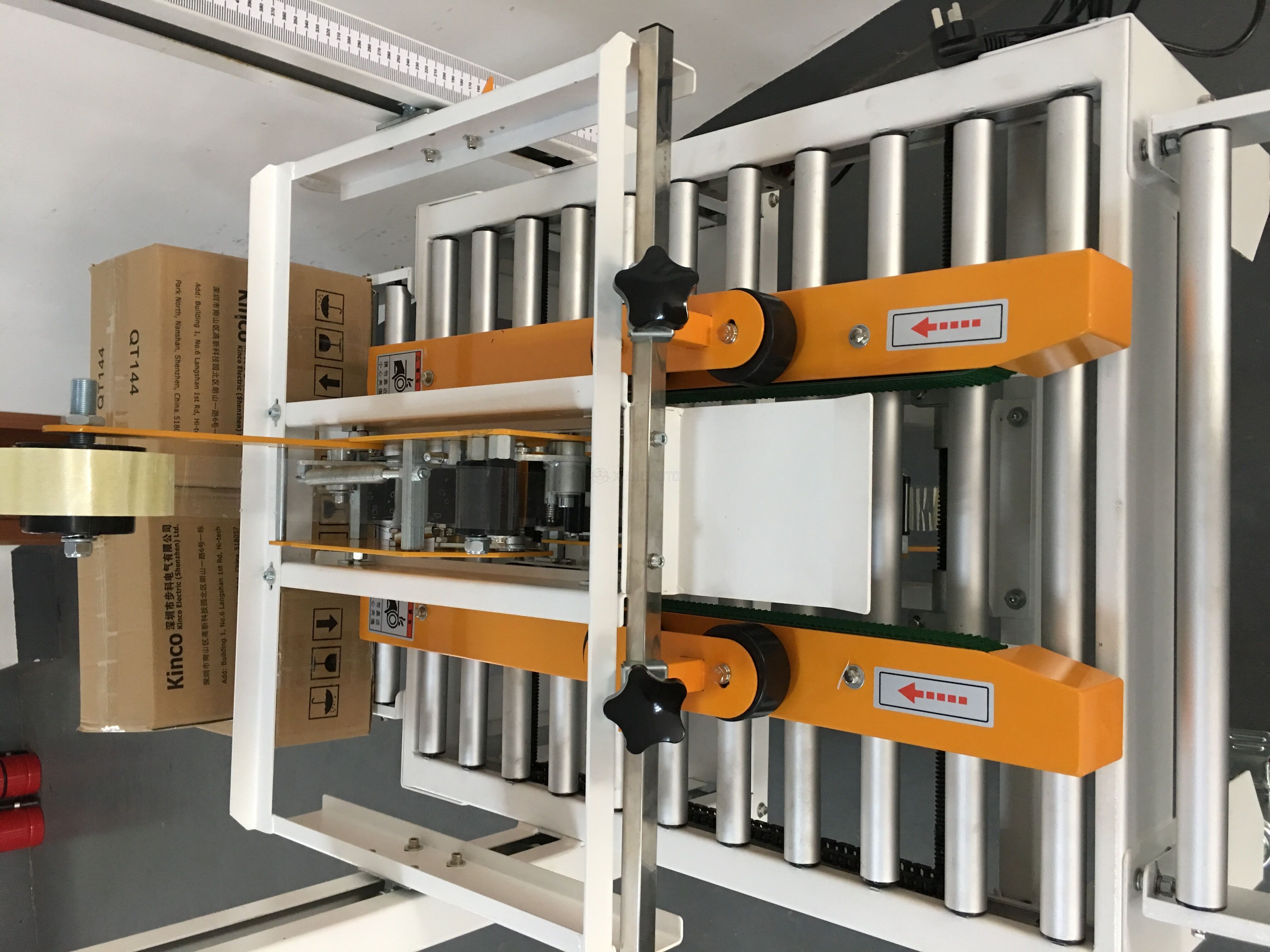

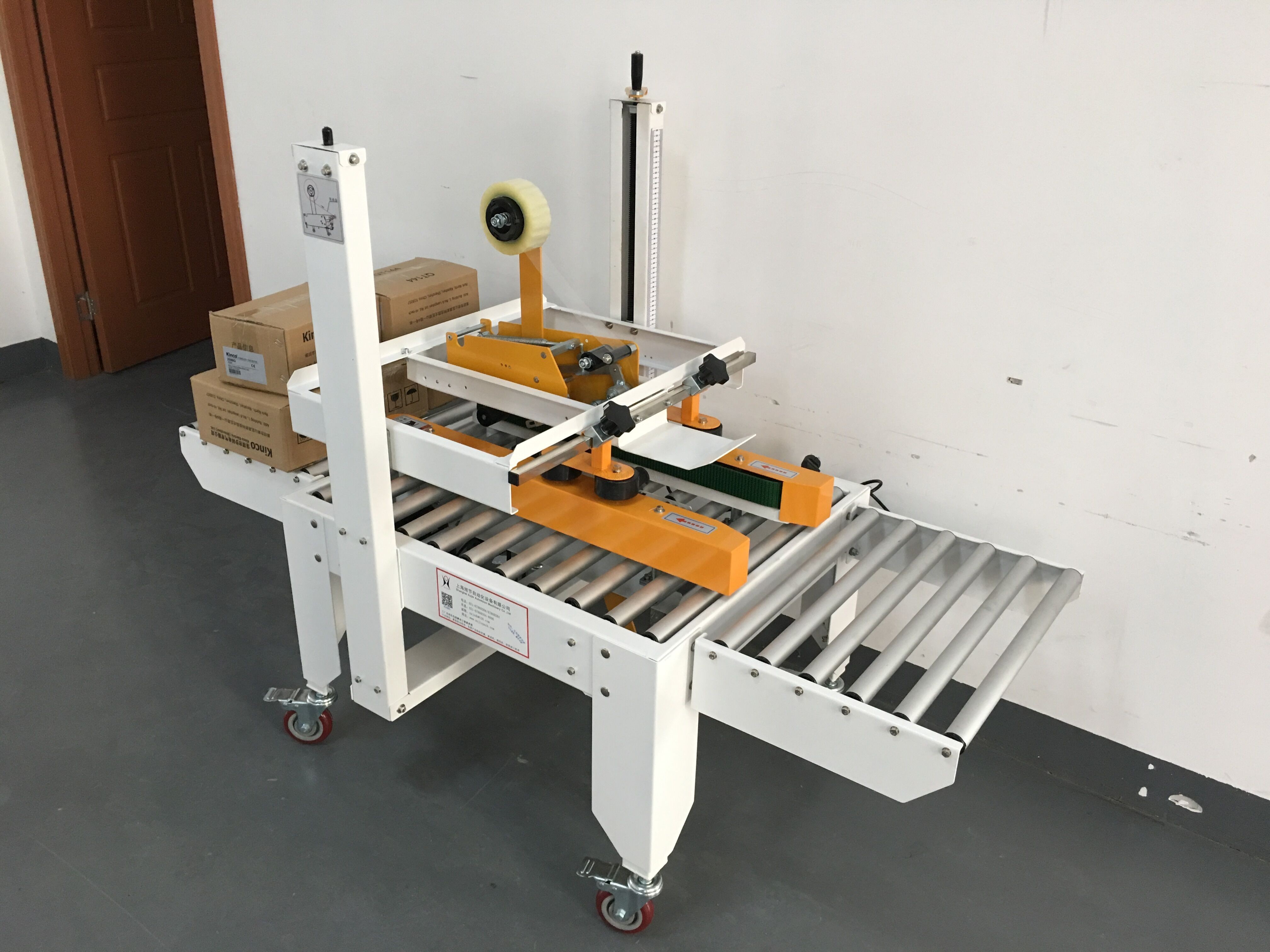

FX-1A Case Sealer

Machine Description

The machine is widely used in the fields of electrical, domestic, textiles, foodstuffs, general  merchandise, medicine and chemical industries.

Machine Feature

1. carton sealing machine is mainly used in sealing and packing cartons, which can be used either independently or as a necessary part of a production line.

2.Adjust sealing height and width by hand according to the size of carton, then put carton on  worktable, and carton will be transmitted through and sealed with tape automatically at the same  time.

3. can provide ink printer to printer dates or letters on the sides of carton.

Technical Parameter

Model

FM6050

Power sources

220V/ 50Hz

sealing  capacity

About 1,000 standard cases per hour

Adhesive tape used

BOPP, PVC adhesive tape

Width of adhesive tape

36,48,60 mm

Max. sealing size (W*H)

500*600mm

Min. sealing size (W*H)

140*150mm

Machine dimensions

1800×706×1380~1580mm

power

240W

driving mode

Conveyor belt driving up and down
